1/10 HPI Stage-D10 Creator Edition Kit

1/10 HPI Stage-D10 Creator Edition Kit

Unleash pure RWD drift performance with the Stage-D10 Creator Edition. Featuring a purpose-built 2WD drift chassis and over 200 drivetrain configurations, this platform delivers unmatched adjustability, oil-filled coilover shocks, and scale realism ready for your custom build.

Features

• Chassis & Setup: Purpose-built 1/10 scale 2WD RWD drift chassis with an adjustable 246 to 264mm wheelbase (255mm standard) and over 100 rear motor positions.
• Drivetrain & Gearbox: Sealed composite geared rear differential with 3 or 4 gear gearbox configurations and reversible motor direction.
• Suspension & Steering: Oil-filled threaded-body coilover shocks, adjustable front and rear camber links, fully adjustable Ackermann geometry, and alternative shock pistons.
• Tuning & Geometry: Adjustable toe block options, multiple roll center/camber gain positions, and adjustable wheel hex spacing with 1mm and 2mm click-in spacers.
• Scale Details & Mounts: Rotating front/rear brake disc hex adaptors, adjustable/removable scale brake calipers, rear chassis diffuser, and HPI magnetic body mounting system with 3x10mm N52 magnets.
• Electronics Support: Multiple-position gyro mounting bracket, adjustable rear ESC mounting plate, integrated wiring guides, and motor fan mounting bar.

Includes

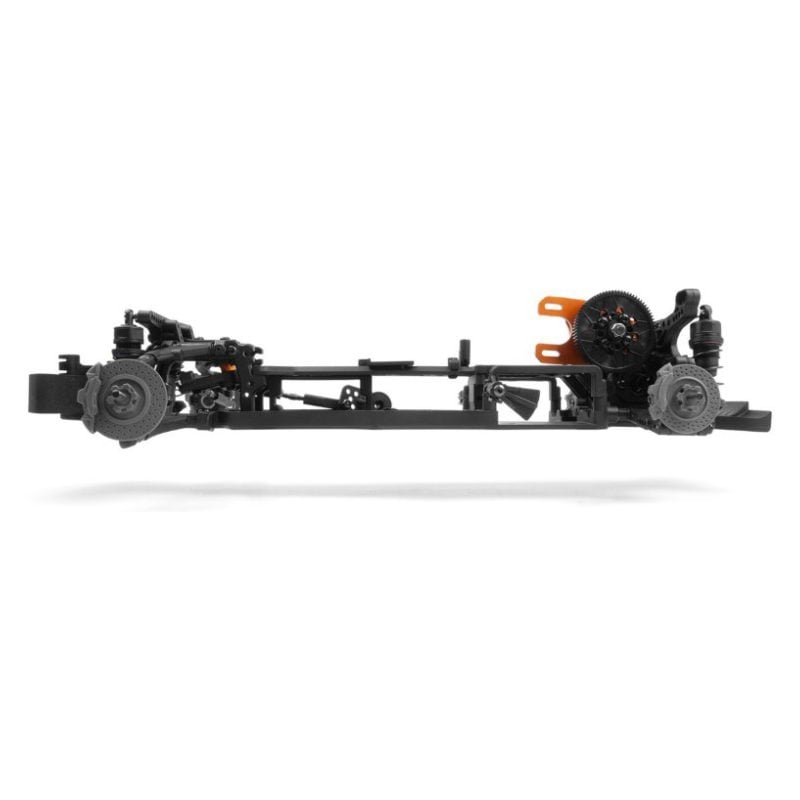

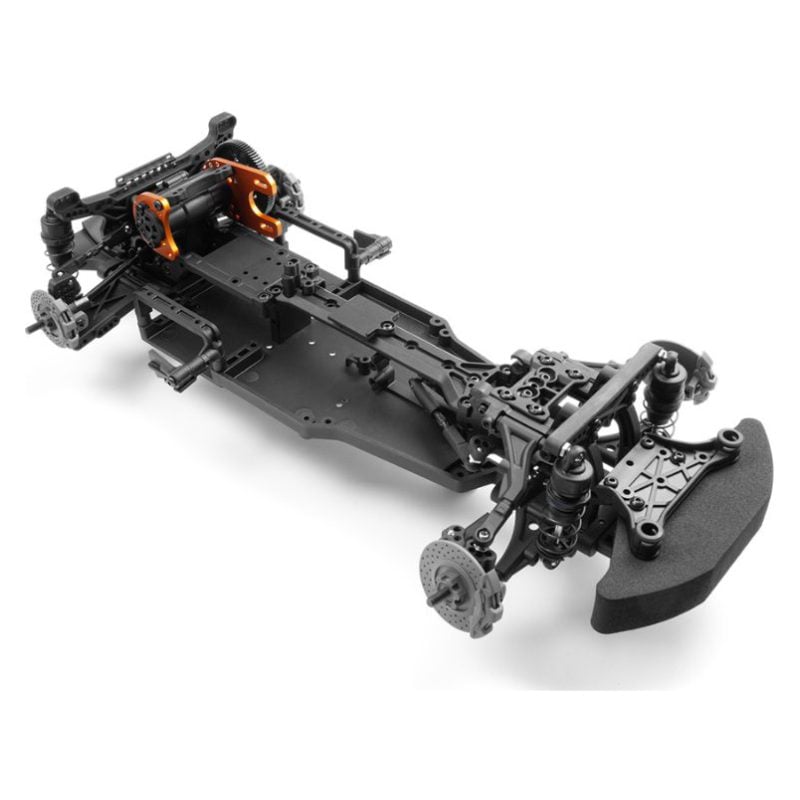

• 1x HPI Stage-D10 Creator Edition Chassis (Fully Built)
• 1x Alternative shock pistons set
• 1x Adjustable toe block options set
• 1x Servo saver and solid servo arm options
• 1x Motor fan mounting bar
• 1x HPI magnetic body mounting system (with 3x10mm N52 magnets, composite locating surrounds, and 10mm steel ball mounts)
• 1x Aerocatch-style screw-lock mounting hardware for pre-drilled bodies
• 1x Conventional body post mounting options set

Needed To Complete

• 1/10 scale car body: 190mm or 200mm wide
• Wheels & Tires: Touring car wheels and drift tires
• Radio System: 2-4 channel surface RC radio system
• Steering Servo: High-performance steering servo
• Electronics: Electronic Speed Controller (ESC) and drift gyro
• Power Plant: Compatible motor and pinion gear
• Power Source: Vehicle battery and compatible charger

Specifications

• Scale: 1/10th scale
• Drive Type: 2WD Rear-Wheel Drive (RWD)
• Wheelbase: 246mm to 264mm (255mm standard setup)
• Length: 390mm
• Width: 190mm
• Height: 75mm
• Internal FDR: 2.6
• Assembly Level: Creator Edition (Pre-built chassis, electronics and body required)
