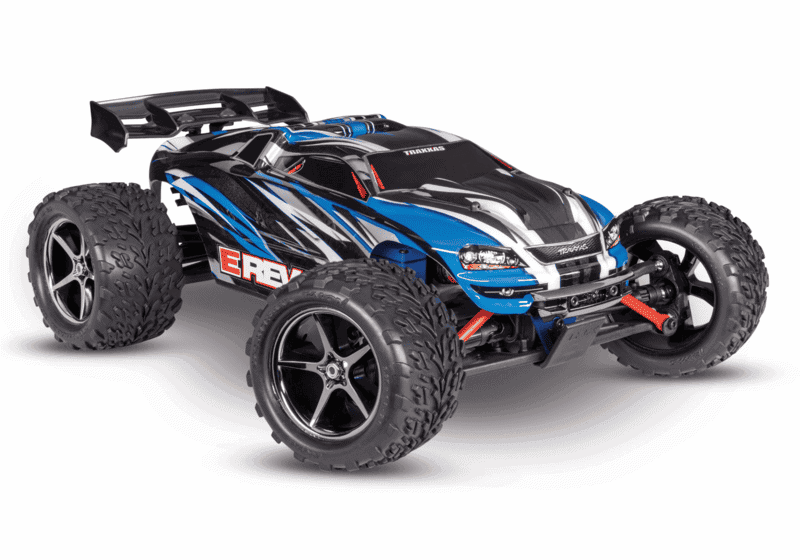

1/16 Revo: 4X4 Monster Truck w/USB-C: Blue


SKU: 71054-8
SKU 71054-8 categories: , MPN: 71054-8 UPC: 020334017574 Brand: traxxas logoTraxxas

1/16 E-Revo® takes all the track-proven innovation of the full-size E-Revo VXL and scales it down to a convenient go-anywhere size.

In stock


  Pre-OrdersLocal Pick-Up, ShippingReturn Information.




Traxxas 71054-8 Red 1/16 RTR XL2.5 E-Revo 4WD Monster Truck with Battery and USB-C Charger

1/16 E-Revo® takes all the track-proven innovation of the full-size E-Revo VXL and scales it down to a convenient go-anywhere size. E-Revo’s rocker-actuated suspension has been expertly adapted to 1/16 scale with its oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. E-Revo’s monocoque chassis balances strength and weight to far surpass the standards of the “mini” category.


Leave it to Traxxas to put the huge torque of the Titan 550 motor into the 1/16 E-Revo for unstoppable climbing, roosting, and monster performance! The Titan modified motor delivers exciting power output with long-lasting performance. An integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-2.5™ electronic speed control comes standard with three drive profiles, low voltage detection, thermal shutdown protection, and gold-plated connectors.


1/16 E-Revo includes a powerful 7.2 volt 1200 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 2-amp charging is available virtually anywhere thanks to the included USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.


1/16 E-Revo comes Ready-To-Race out of the box with the TQ 2.4 GHz 2-channel radio system, XL-2.5 electronic speed control, and included 7.2 V battery and charger. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun.



  • 2-amp USB-C fast charger
  • Traxxas Power Cell NiMH battery with iD®
  • TQ 2.4 GHz radio system
  • Race-inspired suspension and chassis design
  • Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
  • XL-2.5™ Waterproof Electronic Speed Control
    • Innovative waterproof design
    • LiPo and NiMH compatible with two-stage low-voltage detection
    • Fully-proportional forward, reverse, and braking control
    • Programmable with three drive profiles:
      • Sport Mode – Fwd / Brake / Rev
      • Race Mode – Fwd / Brake
      • Patented Training Mode – 50% Fwd / Brake / 50% Rev
    • EZ-Set® push-button setup
    • Multi-color LED
    • Thermal shutdown protection
    • Efficient, low-loss MOSFET design
    • High-capacity heat sink
    • Smooth, high-frequency operation
    • Easy installation in Traxxas models
  • Titan® 12T Modified Motor
  • Digital high-torque waterproof micro steering servo (2080)
  • Waterproof, O-ring sealed receiver box
  • Sealed, silicone-filled differentials—an industry first in 1/16 scale
  • Torque-Control™ slipper clutch
  • Heavy-duty CV-style driveshafts
  • Rubber-sealed ball bearings
  • External gear cover with easy slipper access
  • Extended-wheelbase rear suspension arms (+10 mm)
  • Rocker-actuated shocks provide true progressive damping and spring rates
  • Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
  • Fiber-composite monocoque chassis
  • Speed control and receiver are securely fastened to chassis
  • Integrated battery compartments with intake and exit cooling vents
  • Quick-release battery doors for fast pack changes
  • Pre-glued Talon™ Tires with foam inserts
  • Black-chrome Gemini wheels


  • Length: 12.9 inches (328 mm)
  • Front Track: 9.4 inches (239 mm)
  • Rear Track: 9.4 inches (239 mm)
  • Weight: 44 ounces (1.24 kg)
  • Height (overall): 4.6 inches (117 mm)
  • Wheelbase: 7.9 inches (202 mm)
  • Wheel Diameter 2.0″ (50.8 mm)
  • Shock Length (front/rear): 48 mm / 48 mm
  • Front/Rear Tires (glued): Talon™ 2.0″
  • Front/Rear Wheels: 2.0″ Gemini™ (black-chrome)
  • Electronic Speed Control: Waterproof XL-2.5 ESC
  • Motor (electric): Titan® 12T 550
  • Transmission: Heavy-Duty Single Speed
  • Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
  • Overall Drive Ratio: 15.75:1 (stock, out-of-box)
  • Differential Type: Hardened Steel Bevel, Sealed
  • Gear Pitch: 48-Pitch
  • Chassis Structure/Material: Molded Composite Nylon Monocoque
  • Brake Type: Electronic
  • Drive System: Shaft-Driven 4WD
  • Steering: Bellcrank
  • Transmitter: TQ 2.4GHz Radio
  • Receiver: 6519 3-Channel Micro
  • Top Speed: 20+mph
  • Skill Level: 1
  • Battery Tray Dimensions: 89 mm x 35.5 mm x 20 mm
  • Included Batteries: 6-cell Power Cell iD NiMH battery with 2-amp Peak Detecting DC Charger
  • Required Batteries: 4 “AA” (transmitter)
    • Input Voltage: 6-cell (7.2 V) NiMH, 2-cell (7.4 V) LiPo
    • Case Size: 26.5 mm W x 46.5 mm D x 22 mm H
    • Weight: 33 grams
    • Motor Limit: 10-turns*
    • On Resistance (@Trans): 0.008 Ohms
    • Reverse Delay: None
    • BEC Voltage: 6.0V DC
    • Power Wire: 16 Gauge / 40 mm
    • Input Harness Wire: 26 Gauge / 130 mm
    • Motor Wires: 26 Gauge / 130 mm
    • Transistor Type: MOSFET
    • Low Voltage Detection: 2-Stage indicators, switchable (on and off)
    • PWM Frequency: 2300 Hz
    • Thermal Protection: Thermal shutdown
    • Profile selection:
      • Sport Mode: 100% FWD, 100% brakes, 100% REV
      • Race Mode: 100% FWD, 100% brakes, no REV
      • Training Mode: 50% FWD, 100% brakes, 50% REV (Patented)
    • Single-button setup: Yes, Traxxas EZ-Set®
