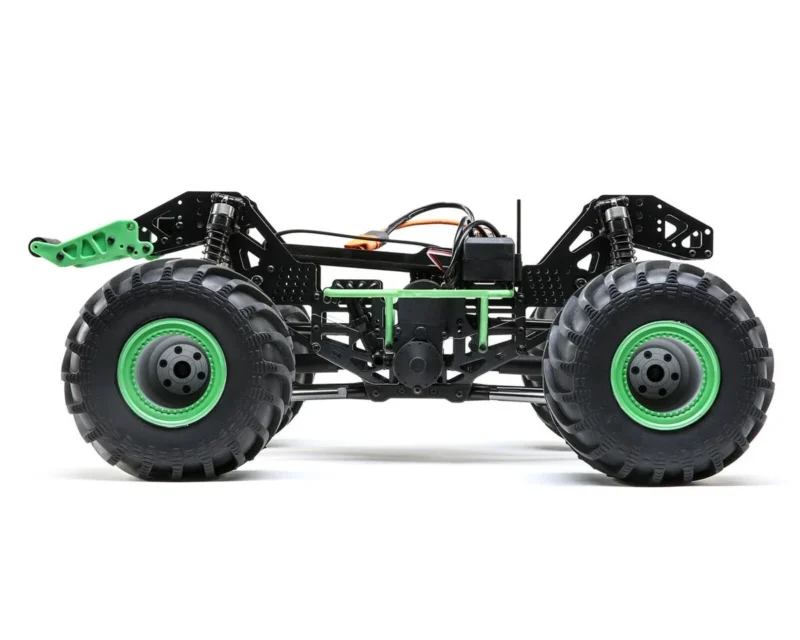

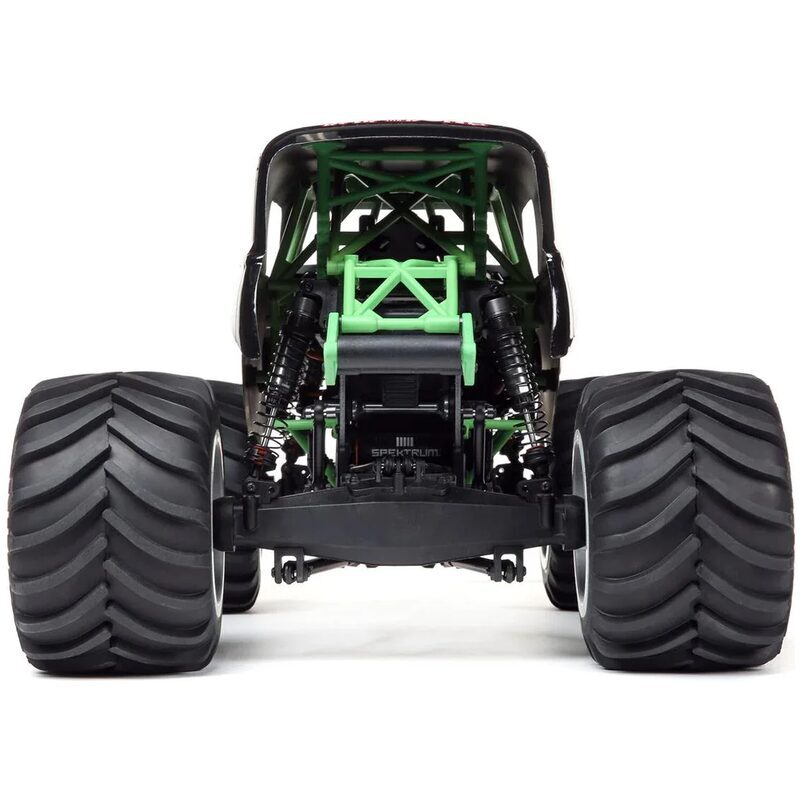

LMT 4WD Solid Axle Monster Truck RTR Grave Digger
Â
Â
The Losi LMT Grave Digger RTR 1/10 4WD Solid Axle Monster Truck with DX3 2.4GHz Radio is breaking into the market with an unbeatable combination of all-out performance, impressive scale detail and iconic good-looks.Â
Â
Â
This Monster’s features start with the chassis, with a twin vertical plate designed to provide all the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight on any terrain. Updated multi-piece axle housings surround the 1/8th scale drivetrain. Additionally, the easy access center transmission comes stock with a center differential and allows for quick changes with the optional spool for that wheel standing action. For the true Monster truck experience, the axles also allow for optional 4-wheel steering and an adjustable servo saver to keep the wheels pointed in the right direction. A composite flip top cage adds scale realism and protection while giving easy access the battery and electronics. The LMT Monster Truck has entered the solid axle, and is a great RTR option when you want to crush your competition.
Â
Â
Â
Â
Features:
- Solid Axle Monster Truck Roller
- Twin Vertical Plate Chassis
- Composite Flip Top Cage
- Multi Piece Scale Axle Housing
- Long Travel Coil Over Shocks
- Center Differential with Cush Drive
- 1/8th Scale Diffs
- Short Course Style Wheel with replaceable center hub
- Scale Monster Truck Tire
- Adjustable Servo Saver
- Scale Details
- Driver Insert
- Preset motor plate produces easy, precise gear mesh
- Elastomer battery mounting for a versatile battery hold down system
Â
Specifications:
Ball Bearings:Â Full set
Body:Â Trimmed and painted “Grave Digger”
Chassis:Â 6061-T6 Aluminum Twin Vertical Plates with Removable Shock Towers
Completion Level:Â Ready-To-Run
Differential:Â Bevel gear, sealed
Drivetrain:Â 4WD
Drive Type:Â Forward/Brake/Reverse
Final Drive Ratio:Â 18.76:1
Power Type:Â Electric
Gear Pitch:Â 1.0 MOD
Ground Clearance:Â 2.0″ (50.8mm)
Internal Gear Ratio:Â 10.16:1
Motor Size:Â 3660
Motor Type:Â Brushless – Sensorless
Pinion:Â 14T
Product Height:Â 11.8″ (300 mm)
Product Length:Â 22″ (559 mm)
Product Weight:Â 10.9lbs (4.94kg) without battery
Product Width:Â 15.4″ (391 mm)
Radio:Â Included
Scale:Â 1/10
Servos:Â Included
Shock Type:Â Aluminum body , oil-filled, coil-over
Suspension:Â Solid Axle 4-link
Tire Compound:Â Firm
Tire Tread:Â BKT Monster truck
Tire Type:Â All-terrain
Vehicle Type:Â Monster Truck
Wheelbase:Â 13.5 in (342.9mm)
Wheel Hex Size:Â 17mm
Wheel Width:Â 4.0 in (101.6mm)
Â
Includes:
- (1) LMT 4WD Solid Axle Monster Truck RTR
- (1) DX3 2.4GHz Radio
- (1) Product Manual
Needed to Complete:
- 2-3S LiPo Battery with IC5/EC5 Connector
- LiPo Compatible Charger
