Losi LMT 4WD Solid Axle Monster Truck Roller

$399.99

SKU: LOS04022
SKU LOS04022 category: Tag: MPN: LOS04022 UPC: 605482717813 Brand: Losi LogoLosi

The Losi LMT 4WD Solid Axle Monster Truck Roller was designed from the ground up to provide the solid axle MT world with all-out performance and i…

Out of stock



  Pre-Orders, Local Pick-Up, Shipping & Return Information.



SHARE:

Description

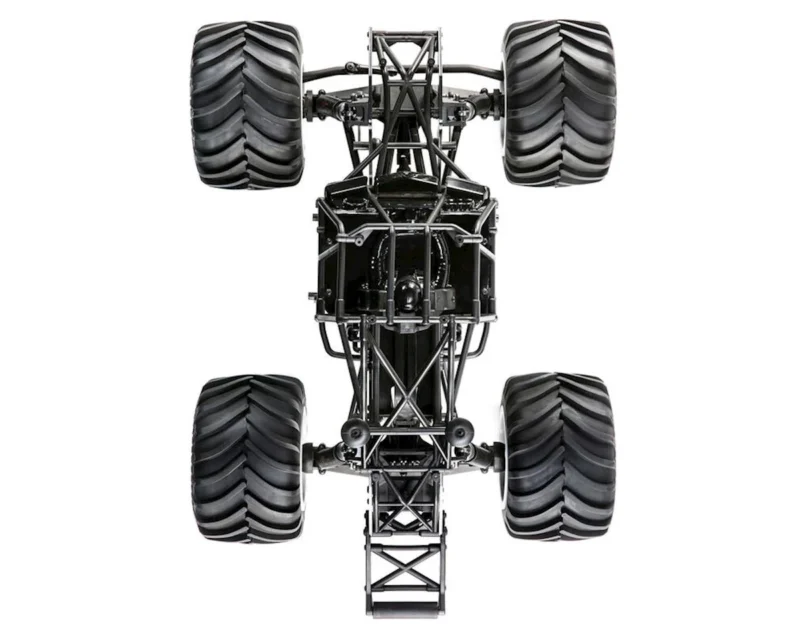

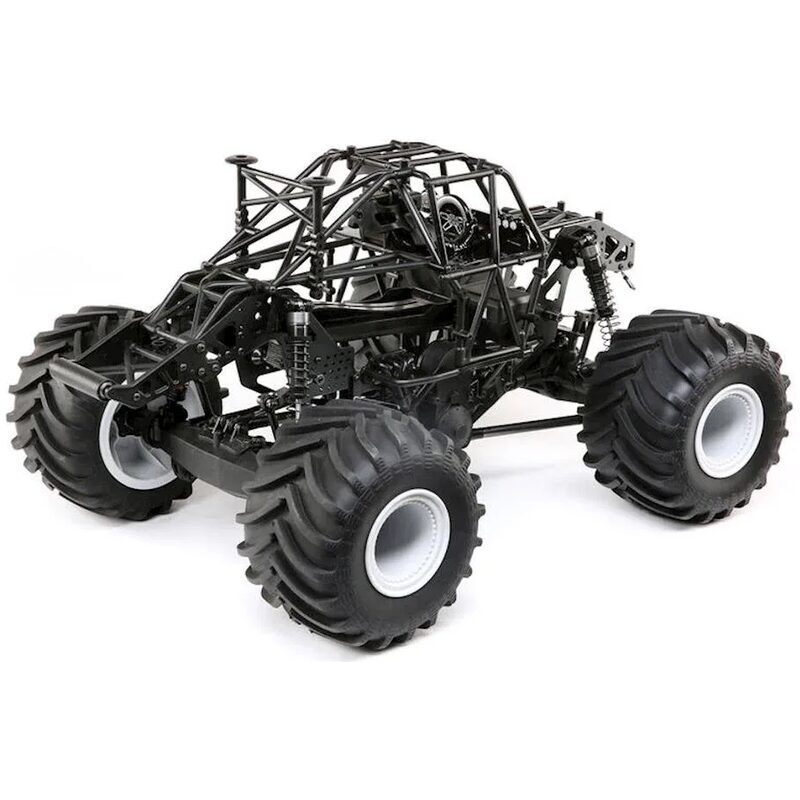

The Losi LMT 4WD Solid Axle Monster Truck Roller was designed from the ground up to provide the solid axle MT world with all-out performance and incredible scale detail – in an incredibly durable package. Starting with the chassis, a twin vertical plate is designed to provide all the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight, no matter the terrain.



Multi-piece axle housings surround the 1/8th scale drivetrain. Additionally, the easy access center transmission comes stock with a center differential and allows for quick changes with the optional spool for that wheel standing action. For the true Monster truck experience, the axles also allow for optional 4-wheel steering and an adjustable servo saver to keep the wheels pointed in the right direction. A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics. Plus, this option lets you add the gear you want to finish it up and get it ready for the track. Add the transmitter, battery, charger, servo, motor and body you want to create a completely custom rig.


Features:
  • Solid Axle Monster Truck Roller
  • Twin Vertical Plate Chassis
  • Composite Flip Top Cage
  • Multi Piece Scale Axle Housing
  • Long Travel Coil Over Shocks
  • Center Differential with Cush Drive
  • 1/8th Scale Diffs
  • Short Course Style Wheel with replaceable center hub
  • Scale Monster Truck Tire
  • Adjustable Servo Saver
  • Scale Details
  • Driver Insert
  • Preset motor plate produces easy, precise gear mesh

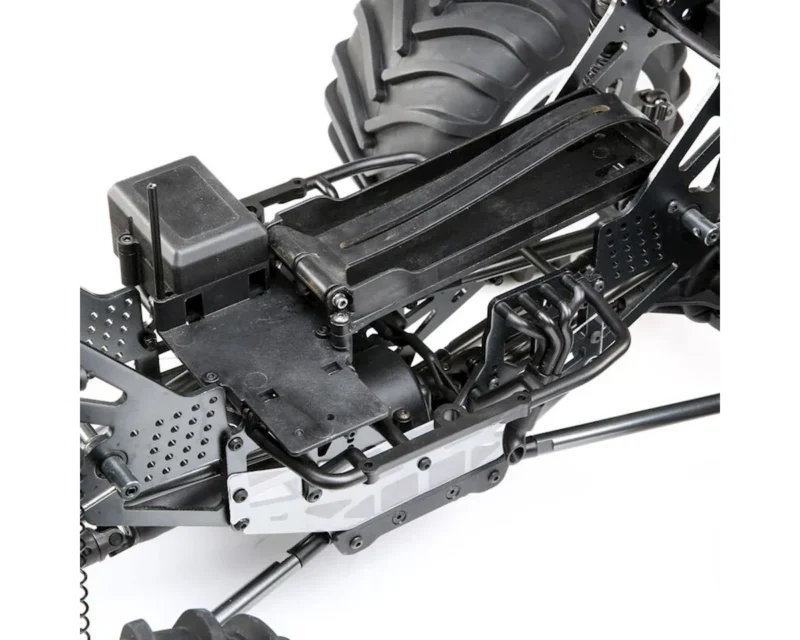

  • Elastomer battery mounting for a versatile battery hold down system



Specifications:
Approximate Assembly Time: 1 – 3 hours
Ball Bearings: Full set
Battery: Sold Separately
Body: Sold Separately
Charger: Sold Separately
Chassis: 6061-T6 Aluminum Twin Vertical Plates
Differential: Bevel gear, sealed
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 18.76:1
Gear Pitch: MOD 1.0
Internal Gear Ratio: 10.16:1
Product Height: 11.8″ (300 mm)
Product Length: 22″ (559 mm)
Product Width: 15.4″ (391 mm)
Radio: Sold Separately
Receiver: Sold Separately
Servos: Sold Separately
Shock Type: Aluminum body oil-filled coil-over
Suspension: Solid Axle 4-link
Tire Compound: Firm
Tire Tread: BKT Monster truck
Tire Type: All-terrain
Vehicle Type: Monster Truck
Wheelbase: 13.5″ (342.9mm)
Wheel Hex Size: 17mm
Wheel Width: 4″ (101.6mm)


Includes:
  • (1) LMT 4WD Solid Axle Monster Truck Roller
  • (1) Product Manual
Needed to Complete:
  • 130A or more ESC
  • Brushless Motor
  • 3-4S LiPo Battery
  • LiPo Compatible Charger
  • Surface Transmitter and Receiver (2-Channel Minimum)
  • Monster Truck Body Set
  • Assorted tools (see manual for details)
