MINI-Z 4×4 Series MX-01 Readyset Land Rover Defender 90 Heritage Grasmere Green / Alaska White

$139.99

SKU: KYO32527GR
SKU KYO32527GR category: Tag: MPN: KYO32527GR UPC: 4548565423309 Brand: kyosho logoKyosho

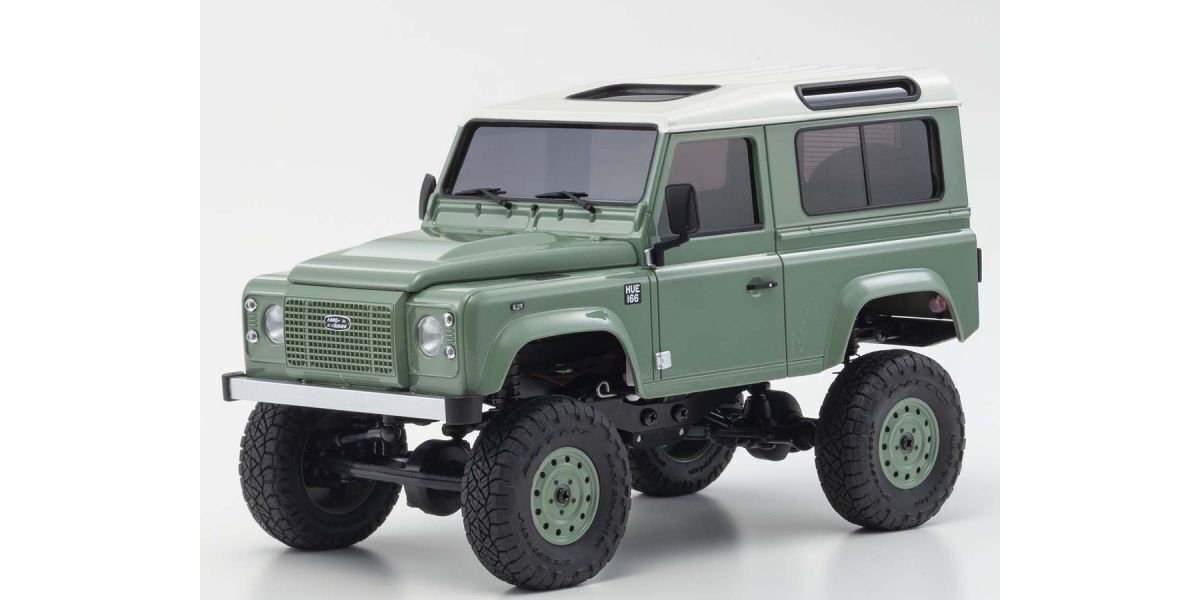

This is a MINI-Z 4×4 Series MX-01 Readyset Land Rover Defender 90 Heritage Grasmere Green / Alaska White.

In stock



  Pre-OrdersLocal Pick-Up, ShippingReturn Information.



SHARE:

Description


Kyosho MX-01 Mini-Z 4X4 Readyset with Land Rover Defender 90 Body!

The Kyosho MX-01 Mini-Z 4X4 Readyset, complete with 2.4GHz Radio System and Land Rover Defender 90 Body, is a totally different addition to the popular MINI-Z series that is built with the attention to scale detail and quality design expected of Kyosho. Introducing the “MINI-Z 4×4”, a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4×4 beauty features a fine-tuned overall design, superior driving performance and high-quality injection-molded scale body construction.



The MX-01 series is built with the attention to scale detail and quality design expected of Kyosho, and a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4×4 beauty features a fine-tuned overall design, superior driving performance and high-quality injection-molded scale body and details.


Features:

  • PAINTED BODY: Fully pre-painted body looks like a luxury diecast car replica. The thicker body material also provides superior durability. Succeeding through a series of grueling off-road tests, this Land Rover has earned the “Defender” badge it wears proudly as a mark of its proven off-road performance. This MINI-Z 4×4 version embodies the spirit and performance of the original Defender for you to enjoy.
  • BODY MOUNT: A one-touch body mounting system is used instead of the mounts commonly used on all previous Mini-Z cars and trucks. The system uses spring-wire retainers to quickly and easily install and remove the body
  • LADDER FRAME: The Mini-Z 4×4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of rigidity and flex for superior performance and durability
  • SOLID AXLES: Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand heavy loads under the toughest driving conditions
  • STEEL LINK & BALL END: The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, the maximum range of motion, and smooth operation
  • COIL OVER SHOCK ABSORBER: The shock absorbers feature 360-degree spring retainers, which means they can’t be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose
  • ADJUSTABLE WHEELBASE: The 4WD system transmits drive force to the wheels from the main gear unit in the center of the chassis through the front and rear center shafts. The wheelbase can be set to either 110mm or 120mm by adjusting the length of the spacers on the upper arms (the Jeep® uses a 120mm setting)
  • STEERING ANGLE: The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, this model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4×4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling
  • DRAG LINK & TIE ROD: The steering servo drag link and the rugged molded tie rod are part of a steering system that delivers an incredible amount of steering angle, which results in excellent rock crawling capability
  • BATTERY TRAY: Located on the top-front section of the chassis to ensure good ground clearance and achieve realistic rock crawler performance
  • GEARBOX AND GEARS: The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor
  • SLIPPER CLUTCH: A standard slipper clutch to protect the drive system by reducing the torque when excessive load is applied
  • 18 FULL BALL BEARINGS: The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box
  • 130 MOTOR: The Mini-Z 4×4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It’s optimized for maximum torque, and it develops more power at lower speeds
  • SPEED CONTROLLER: The on-board electronics are also unique to the Mini-Z 4×4, with special features that improve the crawling experience. The accessory ports on top of the board allow an optional LED light set (KYOMZW429R) to be easily plugged in to enhance performance and realism
  • STEERING SERVO: The component steering servo features its own casing to allow enhanced performance, and it connects to the receiver/ESC with an independent connector
  • FHSS / KT-531P TRANSMITTER: Included KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to the dual-rate adjustment of steering angle and LED control functions. Control feel has improved with the adoption of the sponge steering wheel. The Gyro effect can be fine-tuned through volume adjustment .*Not compatible with conventional ASF/MHS/FHS 2.4GHz systems. Also not compatible with KO I.C.S systems
  • Light Unit Trim: Use to turn lights off/on when the optional light unit is installed
  • Steering Dual Rate: Adjust amount of steering throw
  • Steering wheel: Sponge grip of the steering wheel provides a comfortable fit and precision control feel

Specifications:

  • Scale: 1/24
  • Length: 185.8mm
  • Width: 83mm
  • Height: 104.0mm
  • Wheel Base: 110mm
  • Weight: 248.6g
  • Chassis Type: MX-01
  • Tread F/R: 72.7mm
  • Motor/Engine: 130 Class
  • Gear Ratio: 55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
  • Tire Diameter: 42.0mm
  • Tire Width: 14.3mm
  • Transmitter: Syncro KT-531P
  • Battery: 4x AAA alkaline
  • Running Time: Approx. 50 minutes

Includes:

  • (1) Complete chassis with built-in electronics
  • (1) Factory-painted body complete with many fine details
  • (1) KT-531P 2.4GHz transmitter
  • (6) Pinion gears (10T, 12T, 14T, 16T, 18T, 20T)
  • (3) Motor spacers



Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is eight AAA alkaline batteries (sold separately). Whether you take your MINI-Z 4×4 to your local park or just crawl across your own desktop, the Mini-Z 4×4 is a mini crawler that delivers a full range of scale crawling performance in a smaller, compact package.
