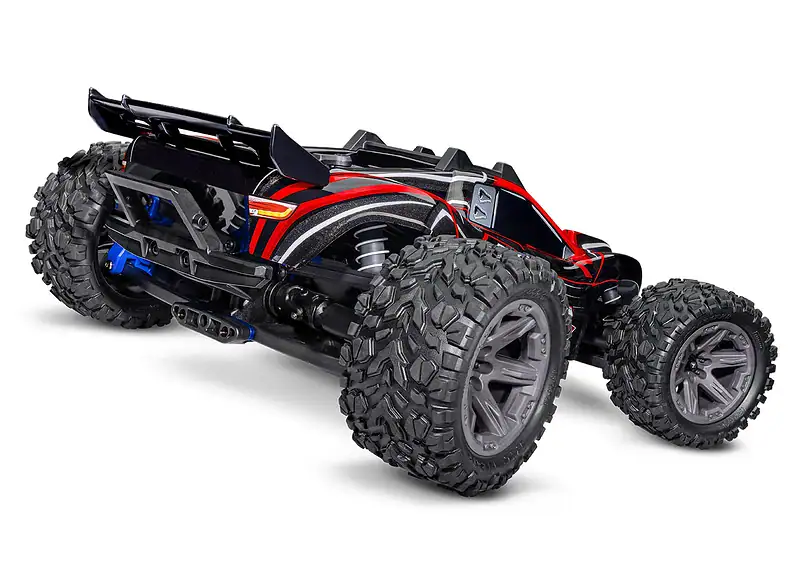

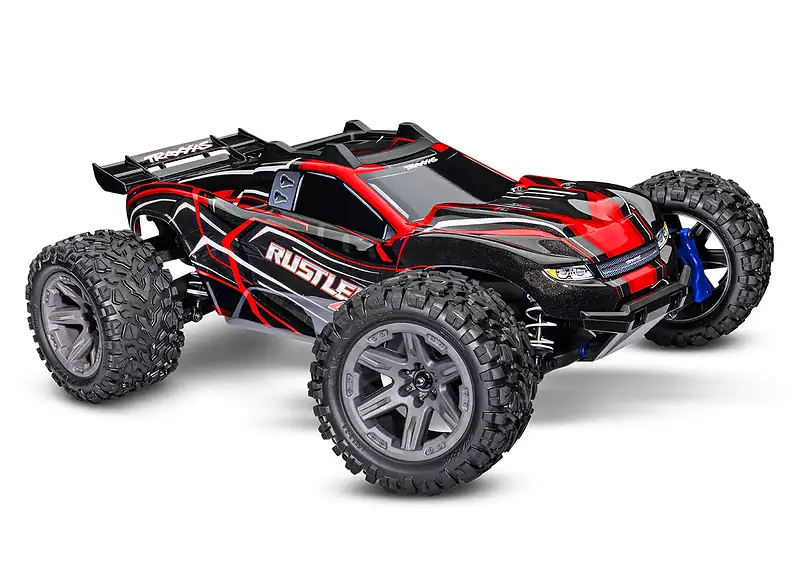

Rustler 4×4 2S Brushless 1/10 Stadium Truck RTR Red

Description

Rustler® 4X4 is the definitive go-to machine for speed, agility, and unstoppable 4WD traction. Beneath the reinforced clipless body, Rustler’s chassis sits low and wide for increased stability and sharp handling. Rustler’s all-new BL-2s™ brushless power system delivers effortless power for all-day fun with an added boost of torque for 4-wheel burnouts and lightning-fast acceleration. Additionally, Rustler 4X4 now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

Rustler 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Rustler 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV motor outlasts brushed motors and requires virtually no maintenance.

Rustler 4X4’s pre-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.

Rustler 4X4 uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-ToughTM durability.

FEATURES:

• Clipless Body
  • Tough front and rear bumpers
  • Reinforced inner cage
  • Rugged roof rollover protector
  • Holds tight for intense action
  • Quick and easy removal
• Extreme Heavy Duty Upgrade Kit Installed
  • Strengthened C-hubs, axle carriers, and steering blocks
  • Extreme heavy duty driveshafts
    • Oversize diameter
    • 6mm axles
    • Steel wheel hexes
• TQ™ 2.4GHz Transmitter
  • Full-size 2-channel transmitter
  • All-day comfort with precise long-range control
• BL-2s™ Waterproof Electronic Speed Control
  • Heat sink accepts accessory cooling fan (#3340)
  • Three Programmable Drive Profiles
    • Sport Mode – Forward / Brake / Reverse
    • Race Mode – Forward / Brake
    • Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set® one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)
• 3300 kV Brushless Motor
  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 kV
• Steering
  • Chassis-mounted 2056 servo
  • Dual bellcrank design with integrated servo saver
• Chassis
  • Modular composite tub design
  • Secure battery hold-down latch
  • Low-CG design
  • High-angle bumpers
• Suspension
  • Heavy duty suspension arms
  • Oil-filled Ultra Shocks
  • White powder-coated springs
• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Oil-filled steel gear front and rear differentials
  • Large 32-pitch spur gear
• Wheels and Tires
  • 2.8″ gray RXT wheels
  • All-terrain Talon™ EXT tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 18 inches (457mm)
• Front Track: 12.94 inches (329mm)
• Rear Track: 12.94 inches (329mm)
• Ground Clearance: 1.10 inches (27mm) (center)
• Weight (no battery): 5.13 pounds (2.33kg)
• Height (overall): 6.35 inches (161 mm)
• Wheelbase: 11.6 inches (295mm)
• Shock Length (front): 3.45 inches (88mm) – Long
• Shock Length (rear): 3.98 inches (101mm) – XX-Long
• Speed Control: BL-2s™ electronic speed control
• Motor (electric): BL-2s™ 3300 kV sensorless brushless
• Overall Drive Ratio: 12.81:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Talon™ EXT with foam inserts
• Tire Diameter: 4.5 inches (114mm) (front and rear)
• Wheels (front/rear): 2.8″ Gray RXT wheels
• Wheel Diameter: 2.8 inches (71mm)
• Radio System: TQ™ 2.4GHz (2-Channel)
• Servo: Waterproof digital #2056 servo (80oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 162mm (6.38″) x 50mm (1.97″) x 25mm (0.98″)
• Required Batteries: 4 “AA” (transmitter), Vehicle
• Motor Specs:
  • Type: BL-2s 3300kV sensorless brushless motor
  • Weight: 7.51oz (213g)
  • Length: 3.15 inches (80mm)
  • Diameter: 1.42 inches (36mm)
  • Connector Type: Traxxas Quick Connect Motor Plug
• ESC Specs:
  • Input Voltage (cells): 4-7 Cells NiMH / 2S LiPo
  • Case Size: 1.53″ (39mm) x 2.31″ (59mm) x 1.21″ (31mm)
  • Weight: 3.07oz (87g)
  • BEC Voltage: 6.0 V
  • Reverse Delay: Yes, with lockout
  • Thermal Protection: Two-stage thermal shutdown
  • Ports: Auxiliary fan

INCLUDES:

• Rustler 4X4 with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries – Rustler 4X4 requires a single NiMH or LiPo battery
• Charger – Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries – Four AA alkaline batteries for the transmitter
