Spektrum Smart S100 G2 USB-C Charge SPMXC2090

$32.99

Spektrum Smart S100 G2 USB-C Charge. Efficiently power your Smart G2 batteries with this compact USB-C charger, ensuring safe and simple charging.

Out of stock

SKU SPMXC2090 Category Tags , , , Brand: Spektrum LogoSpektrum

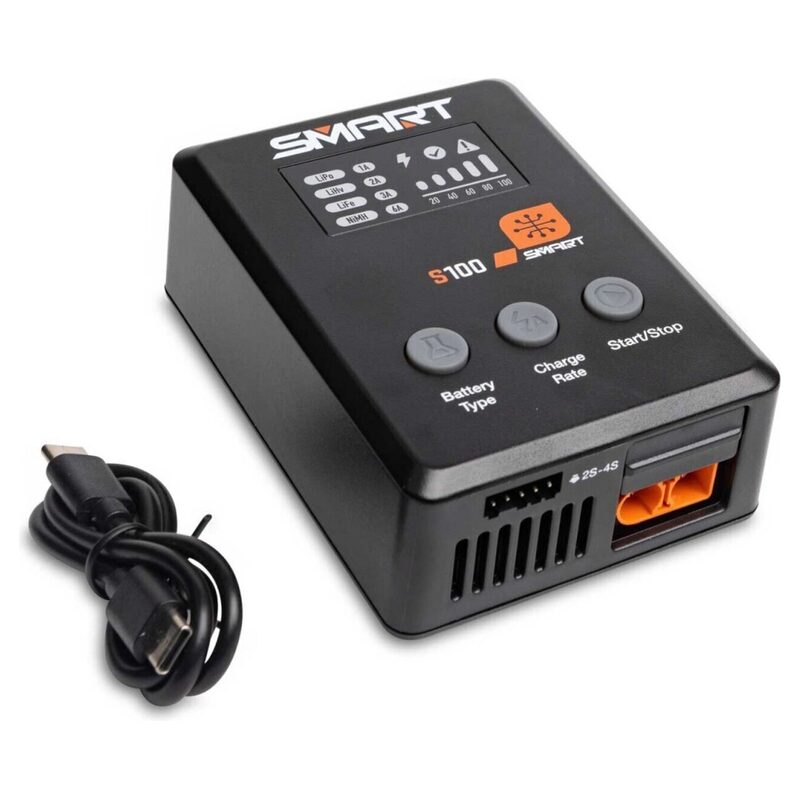

SPMXC2090 Spektrum Smart S100 G2 USB-C Charger

The Spektrum™ Smart S100 USB-C Charger offers advanced, user-friendly charging for RC enthusiasts of all skill levels. With up to 100W of power and a new interface, it provides a versatile and hassle-free charging experience.

This charger can fast charge Smart batteries via either its IC3® or IC5® integrated output port. It supports charging of virtually any RC battery, and when used with Smart batteries, it unlocks incredible functionality and performance.

The S100 Smart USB-C Charger simplifies battery charging with its Auto Charge feature. This feature automatically recognizes your Smart battery’s parameters (like chemistry type and charge rate) and begins safe, correct charging once connected. Balancing Smart batteries is equally straightforward; the S100 balances Smart G2 packs through the same single IC connection used for charging, eliminating the need for separate balance leads.

Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. Simply connect a common USB-C power adapter, and you’re ready to charge.


Features

  • Capable of delivering up to 100W of charging power with compatible power supply and USB-C Cable.
  • Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed.
  • Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected.
  • Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries.
  • Can also be used to charge many standard hobby 1S-4S LiPo, LiIon, LiHV, LiFe, and 1C – 12C Smart NiMH batteries. Note: The S100 will not charge non-Smart NiMH brand batteries.
  • Accepts firmware updates via USB-C port.
  • Color LED screen and three button interface makes charging and checking on a battery’s status simple.

S100 1x100W USB-C Smart Charger Product Specs

FeatureSpecification
ApplicationRC Model Battery Charger
Battery Balance ConnectorJST-XH
Battery Temperature MonitoringYes
Battery TypeLiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell), LiIon (3.3V per cell)
DisplayLED
Input VoltageDC 5.0 – 20.0V, USB-C
Integrated BalancingYes – Internal Balancer & External Adapter
LiPo Compatibility4S, 1S, 2S, 3S
Low Input Voltage ProtectionYes
Maximum Charge Rate1A / 2A / 3A / 6A User Selectable
Number of Output Ports1
Output ConnectorIC3, IC5
Over Current ProtectionYes
Part TypeElectronics
PC ConnectivityYes
Peak DetectionYes
Product Height1.42″ (36mm)
Product Length3.86″ (98mm)
Product Width2.83″ (72mm)
ProgrammableYes
Selectable Charge RateYes
Short Circuit ProtectionYes
Software UpdatesYes
TechnologySmart
Thermal ProtectionYes

Additional information

Weight1 lbs
Dimensions7 × 6 × 7 in
