YD-2S 1/10 2WD RWD Drift Car Kit w/YG-302 Steering Gyro

$204.99

SKU: YOKDP-YD2SG
SKU YOKDP-YD2SG categories: , Tags: , UPC: 639342152483 MPN: YOKDP-YD2SG Brand: yokomo logoYokomo

This is the Yokomo YD-2S 1/10 2WD RWD Drift Car Kit with an included YG-302 Steering Gyro. Featuring a one-piece resin chassis, superior ease of ha…

Out of stock



  Pre-Orders, Local Pick-Up, Shipping & Return Information.



SHARE:

Description

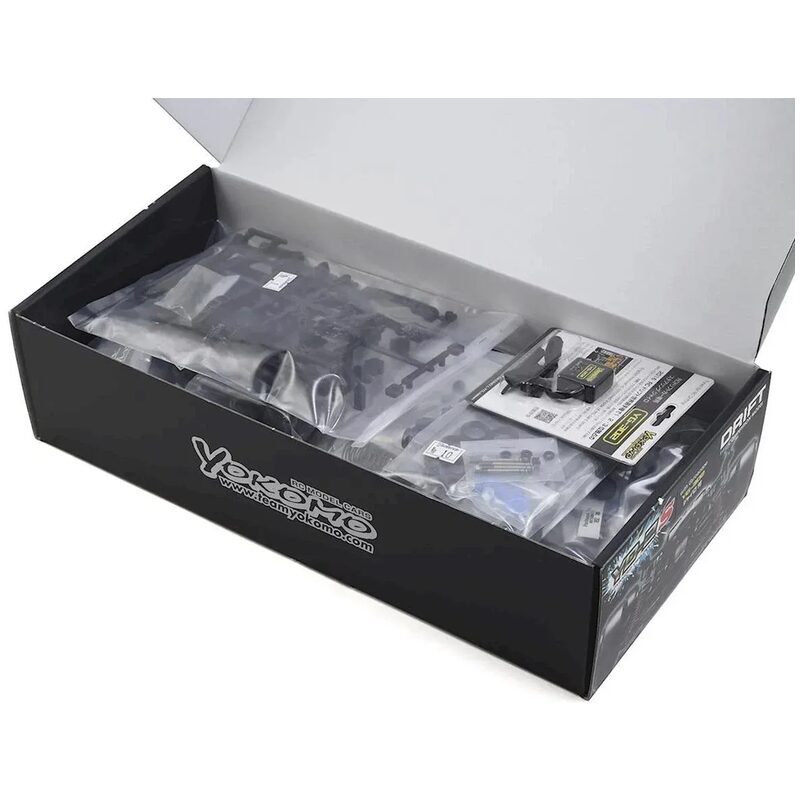

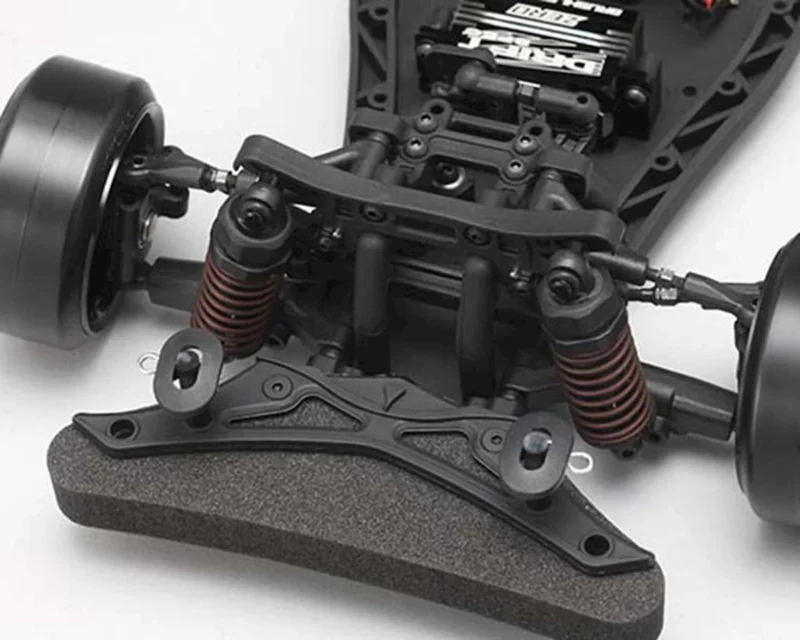

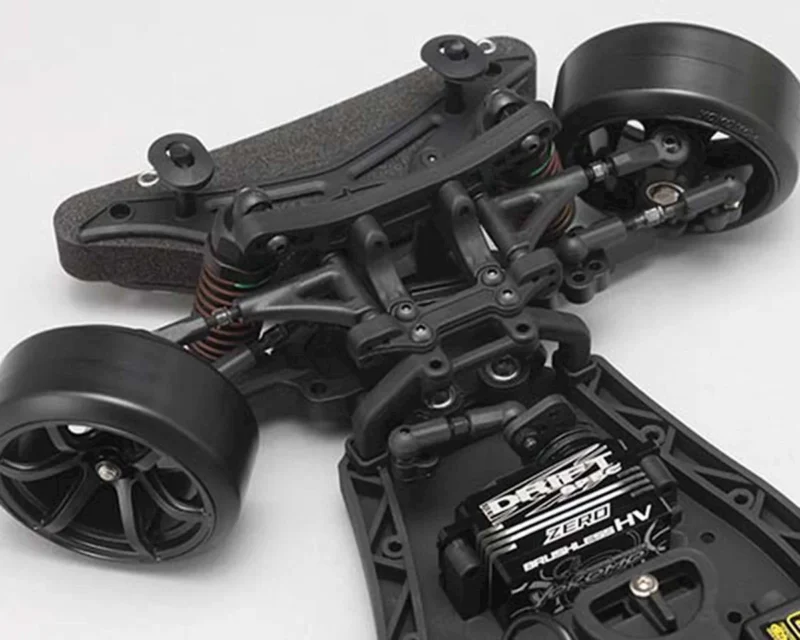

YD-2S 1/10 2WD RWD Drift Car Kit w/YG-302 Steering Gyro



This is the Yokomo YD-2S 1/10 2WD RWD Drift Car Kit with an included YG-302 Steering Gyro. Featuring a one-piece resin chassis, superior ease of handling, high rear traction with a high mount motor, the YD-2S is ideal for low grip road surfaces, such as P tile and concrete! The high-mount motor pulls effective roll especially on low grip road surfaces, and it is possible to run with a high sense of stability even in a slippery situations.



This kit comes including a steering gyroscope, which is important for RWD drift, and it is also a perfect fit for those who are trying RWD drift for the first time. The attached gyroscope is a Yokomo YG-302, which helps prevent hunting (malfunction) due to a hypersensitive reaction while high response, realistic drift driving is enabled.



High Motor Mount Location
The highlight of YD-2S is the high mount motor layout as a results of new gear box development.  Conventional high mount motor layout on YD-2 has been driven by third party conversions, however those are too much height since they just re-layout the motor position by adding high priced carbon made parts with ridiculous appearance.
Too much higher role center delivered the disadvantages on performance as well, such as slow acceleration at the corner exit, and it is not easy to drive at the competition track.  YD-2S enable to select 3 kind of motor positions in order to suits for the best role center to deliver  the best rear traction in several kind of slippery environments.



Transmission
Fully updated designed 4 transmission could squeeze into the bottom of motor, and it is the type to increase the rear traction as rotational torque goes up, supreme for low friction surfaces. Rear differential has 4 pinion gears. Since the motor layout can be changed by selecting from 3 rotate positions at the motor mount plate, the weight balance of the car will be also adjustable to find out the best setting for keeping the supreme steering angle and speed in any kind of slippery surface condition.



Battery
The battery is limited to Shorty LiPo battery, but the mounting layout will have 4 different positions by selecting battery stopper location on the chassis. The layout will be Vertical, Horizontal Front/Mid/Rear in order to complete the fine tuning on weight balance and forward/backward traction.



Features:

  • High mount motor
  • 4 Gear rear transmission
  • Updated designed, Sealed gear box
  • 4 wheel independent double wishbone suspension
  • SLF aluminum big bore oil dumber
  • Plastic main chassis
  • Adjustable aluminum motor mount system
  • RWD high angle steering system
  • 49mm bone rear universal shaft
  • Narrow scrub steering block
  • Wide/Narrow rear diffuser
  • Includes YG-302 High response Steering gyro



Specifications
Length: 425mm
Width: 198mm
Wheelbase: 256mm
Second reduction rate: 1?2.6
Overall weight: 1500g



Needed To Complete:

  • 2-Channel radio system
  • Electronic Speed Control
  • 540 Motor
  • Steering servo
  • 7.4V LiPo battery pack
  • Compatible battery charger
  • Drift car tires & Wheels
  • 200mm TC or Drift body
  • Polycarbonate paint for body



NOTE: Completed vehicle shown for illustrative purposes only and is not included.
