Arrma Felony and Infraction Corvette C8 Body Clear

$84.99

SKU: PRM1577-00
SKU PRM1577-00 category: Tags: , , UPC: 675118177304 MPN: PRM1577-00 Brand: protoform logoProtoform

The Protoform Arrma Felony & Infraction Corvette C8 Body is an officially licensed body option that offers the ultimate aerodynamic upgrade to …

In stock



  Pre-Orders, Local Pick-Up, Shipping & Return Information.



SHARE:

Description

Arrma Felony and Infraction Corvette C8 Body Clear


The Protoform Arrma Felony & Infraction Corvette C8 Body is an officially licensed body option that offers the ultimate aerodynamic upgrade to the popular Felony platform. All the exceptional details of its 1:1 counterpart including aggressive cab-forward design, sculpted side doors, and vents are captured using the latest in 3D CAD and 5-axis milling technology. The extensive decal sheet lets you deck out your C8 with Corvette™ badges, windshield headers, “Jake” skulls, and USA flags. Also included are a custom add-on front splitter and rear wing to complete the super-scale look.

The C8 is formed from durable 1.5mm thick high-quality polycarbonate with paint-then-peel overspray film. This body was designed with wider rear fenders as a direct fit for the Felony™ to clear the 53/107 tires. It will work with Infraction™ rear tires, but to get the optimal look and fit, you can optionally choose to either widen the rear of your Infraction™ chassis with stock rear tires or use Felony™ rear tires with modifications to the rear gear ratio. See the “Fits” list below for the list of parts needed for these modifications.

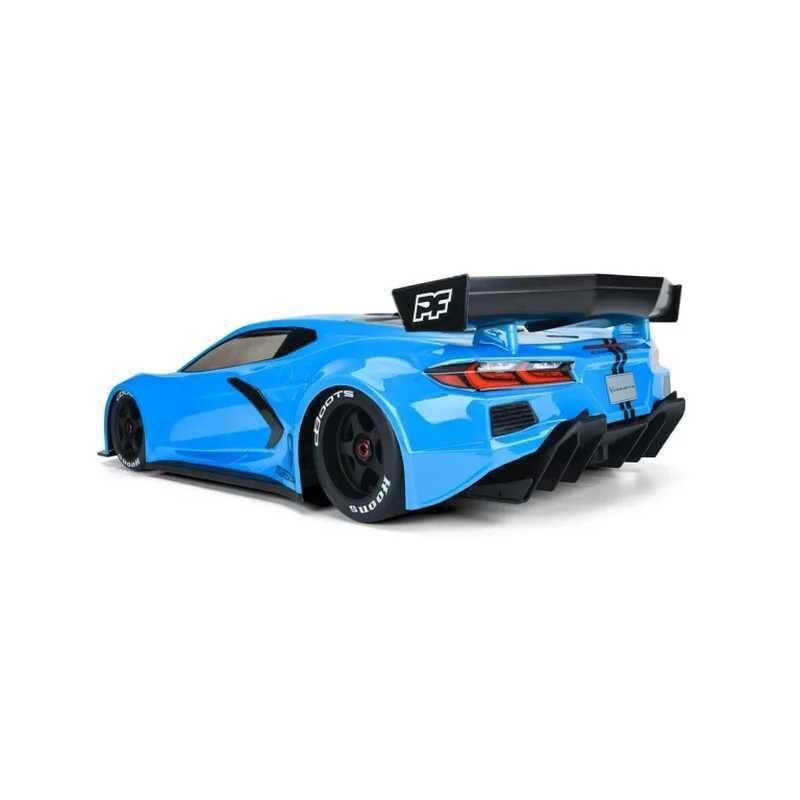

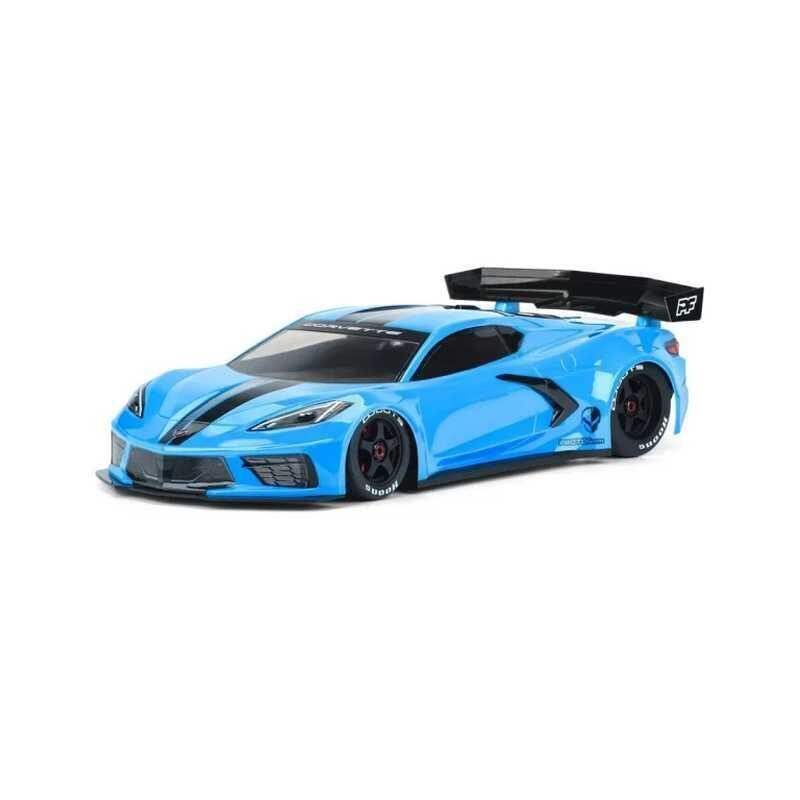

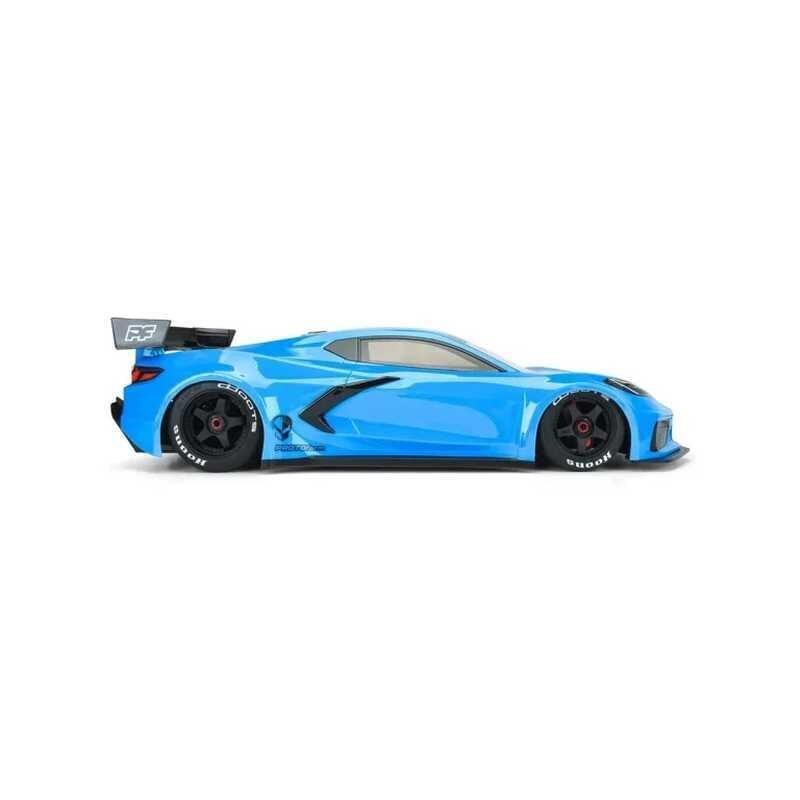

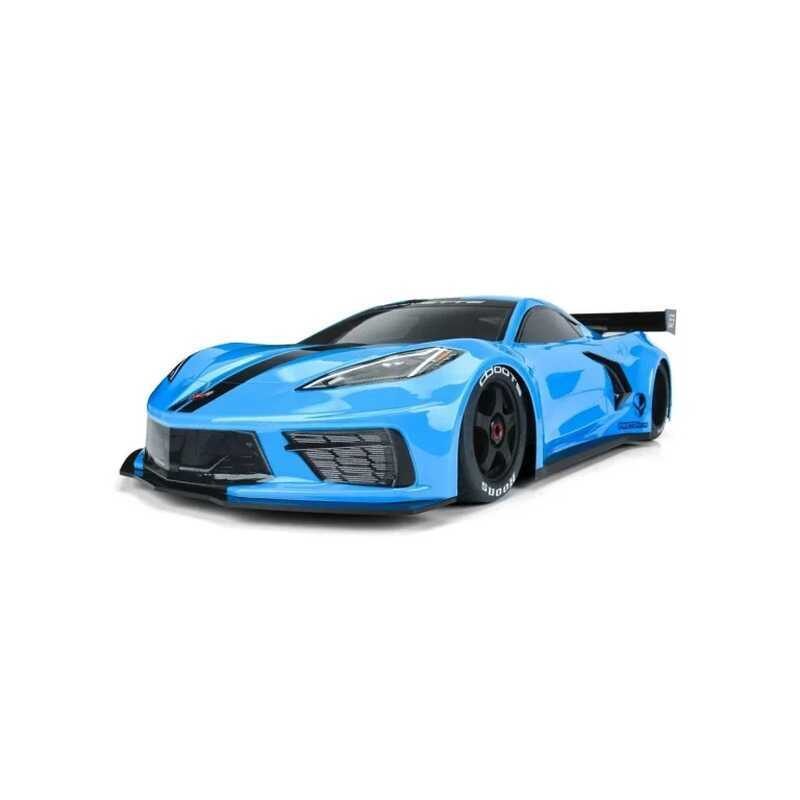

NOTE: Painted body shown in photos is for illustrative purposes only and is not included. The body you will receive is clear and unpainted.


Features:
  • Incredible Scale Details
  • Officially Licensed by General Motors
  • Custom Front Splitter & Wing Designs
  • Made in the USA



Fits:
  • ARRMA® Felony™
  • ARRMA® Infraction™ with:
  • STOCK REAR TIRES – PARTS LIST
    • Rear Hubs (2pcs): AR330404
    • Axles (8x45mm) (2pcs): AR310591
    • Hexes (16.5mm) (2pcs): AR310484
  • FELONY™ REAR TIRES – PARTS LIST (V1 INFRACTION™)
    • 53/107 2.9 Tires (Pair): ARA550073
    • Front Input Shaft Cup (Safe-D): ARA310977
    • Front Input Shaft Cup Sleeve (4pcs): ARA310976
    • Front Main Input Gear 15T GP5: ARA311016
    • Front Main Diff Gear 42T GP5: ARA311017
    • Rear Input Shaft Cup (SAFE-D): ARA310977
    • Rear Input Shaft Cup Sleeve (4pcs): ARA310976
    • Rear Main Input Gear 14T GP6: ARA311018
    • Rear Main Diff Gear 45T GP6: ARA311019
  • FELONY™ REAR TIRES – PARTS LIST (V2 INFRACTION™)
    • 53/107 2.9 Tires (Pair): ARA550073
    • Rear Main Input Gear 14T GP6: ARA311018
    • Rear Main Diff Gear 45T GP6: ARA311019



Specifications:
Length: 27.25″ (892mm)
Width Front: 12.3″ (312mm)
Width Rear: 13.2″ (335mm)
Height: 10.1″ (257mm)
Wheelbase: 7.75″ (196mm)


Includes:
  • Clear Corvette™ C8 Body
  • Front Splitter
  • Rear Wing
  • Wing Mounting Hardware
  • Extensive Decal Sheet
  • Instruction Sheet
  • Paint-then-peel Over Spray Film and Window Masks
