Fazer Mk2 FZ02 1/10 Touring Car Chassis Kit w/2020 Mercedes AMG GT3 with Clear Body


SKU: KYO34441
SKU KYO34441 category: Tag: Brand: kyosho logoKyosho
UPC: 4548565385676



You might also need...

kyo34441 + Lectron Pro 7.4V 5200mAh 35C Lipo Battery with Deans + Deans Charge Lead + Dynamite Prophet Sport Mini Multichemistry Charger (50W/4A/4S)
Price for all: $280.98



The Kyosho Fazer Mk2 FZ02 1/10 Touring Car Chassis Kit provides drivers with the flexibility to add their prefered ESC, motor and radio system, and build a FZ02 chassis to their own specs. The chassis is 40% pre-assembled – but the shocks and differentials are not filled with oil, allowing drivers to build the kit with the setup they prefer. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shaft to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to R/C drivers of all levels.


Shipments of the 2020 Mercedes AMG GT3 model commenced in late 2019 and the cars are expected to compete in major international races including the Japan Super GT. The distinctive powerful aero form of the GT machine is authentically replicated in this 1/10 scale model.

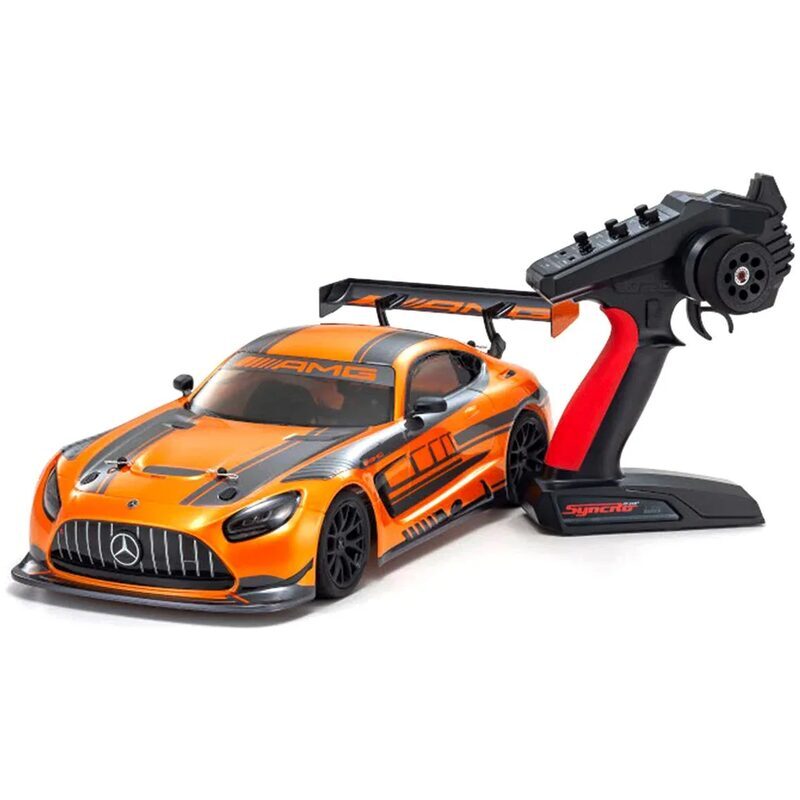

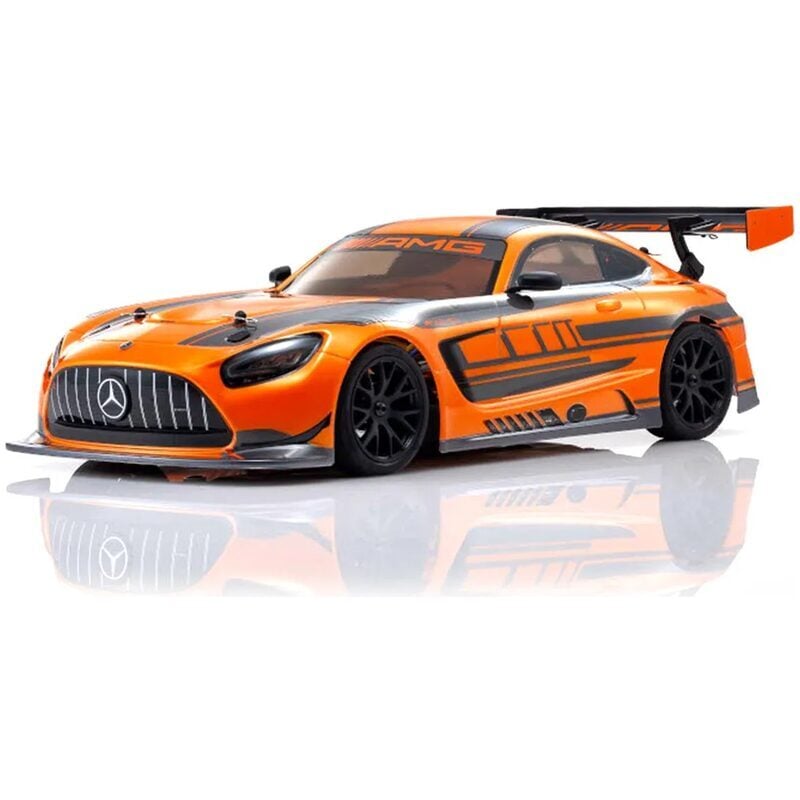

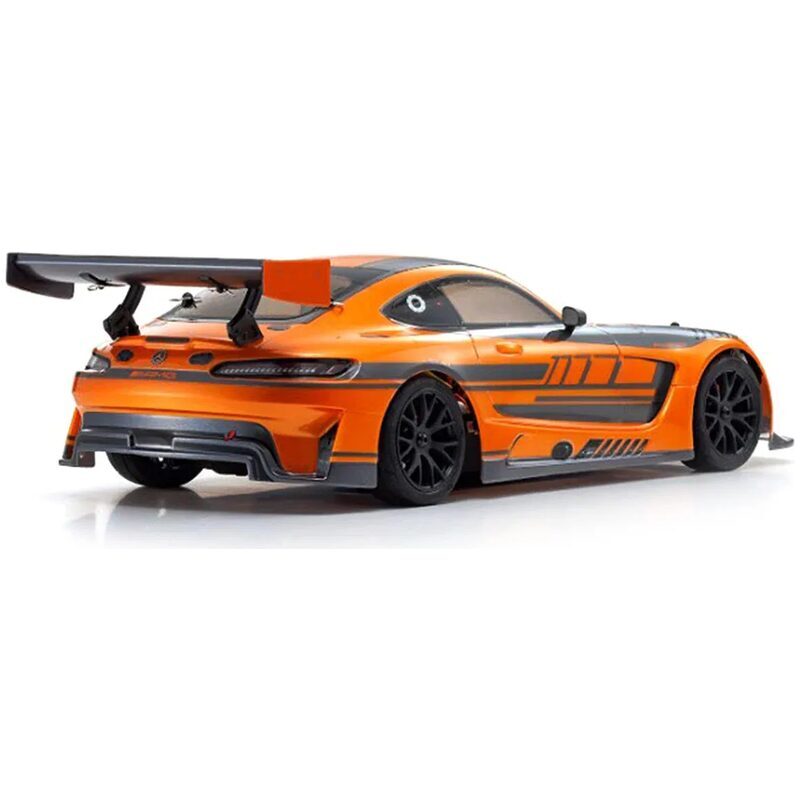

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

  • 40% pre-assembled – shocks and diff gears are not filled with oil so assembly can be completed to preferred setting
  • The FZ02’s effective low center of gravity design compliments the high strength and rigidity realized through front & rear stiffeners and rib reinforcement at key sections of the chassis
  • Clear Mercedes AMG GT3 Body includes window masks, decal sheets, LED compatible light buckets front and rear, and adjustable wing mounts and wing
  • Duralumin HD TC center shaft S (KYOFAW209) provides increased rigidity compared to the standard resin shaft included in the Readyset
  • TC Universal swing shafts (KYOFAW202) on the front drive section don’t drop out on heavy contact like dog bone shafts
  • Swing shafts deliver consistent drive transmission even when joint is at a wide steering angle
  • A special resin transponder mounting stay is included for when the chassis is competing in race events
  • Included optional body mounts enable bodies from various manufacturers to be fitted
  • Two different brake-disk wheel hubs allow 190mm and 200mm chassis width settings for compatibility with various body types
  • Included aluminum plate protects the motor from dirt and provides effective heat dissipation, especially in the heat of summer racing
  • Original low-profile semi-slick pattern tires and inner sponge (KYOFAT701M) combine with 15-spoke black wheels for enhanced racing appeal


Length: 375mm
Width: 200mm/190mm
Ground clearance: 8mm (approx.)
Wheelbase: 260mm
Tread (190mm): F:164mm/R:164mm
Tread (200mm): F:174mm/R:174mm
Tires: F:66mm x 25mm/R:66mm x 25mm
Gear Ratio: 6.54:1
Total weight: Approx. 1490g (with 7.4V / 4000 LiPo)
  • 40% pre-assembled chassis
  • Clear Mercedes AMG GT3 body set
  • FAW202 TC Universal Swing Shaft S
  • FAW209 HD TC Center Shaft S
  • Aluminum Motor Dust Plate
  • transponder mounting stay
  • +0mm, +5mm off-set wheel hubs
  • Body mounts for various manufacturers bodies
  • FAT701M TC Tires(M) w/Inner Sponge
  • VZH003BK Wheels
  • 1.5/2.0/2.5mm Hexagonal wrench
  • 3/4/5/5.5/7/8mm Spanner


Needed to Complete:
  • 2ch 1 servo R/C system for cars (Receiver size:L45xW28xH22mm or less)
  • 540-550 class motor
  • ESC compatible with motor used (Size:L36xW32xH23mm or less)
  • Servo
  • Battery charger and Battery for chassis compatible with ESC used (SIze:L145xW47xH25mm or less)
  • 4 x AA batteries for transmitter
  • Shock Oil
  • Grease (for Ring Gear & Diff)
  • Silicone OIL (for Diff)
  • Pinion Gear for motor
  • Paint for polycarbonate body
  • Tools
