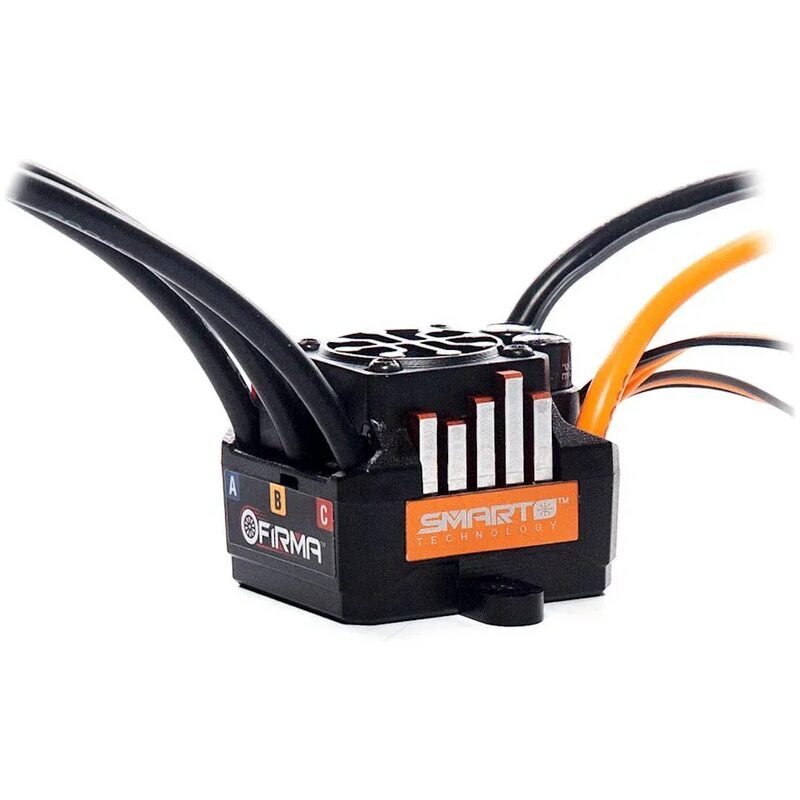

Firma 85 Amp Brushless Smart ESC 2S-3S


SKU SPMXSE1085 category: Tag: UPC: 605482716441 Brand: Spektrum LogoSpektrum

The Spektrum Firma 2S 85 Amp Brushless Smart ESC combines “plug-and-play” simplicity with the ability to communicate with other Smart electronics. …

In stock



  Pre-OrdersLocal Pick-Up, ShippingReturn Information.




Firma 85 Amp Brushless Smart ESC 2S-3S
The Spektrum Firma 2S 85 Amp Brushless Smart ESC combines “plug-and-play” simplicity with the ability to communicate with other Smart electronics. Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you’ll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
  • Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry’s leading ESC manufacturer
  • Ideal for 2WD and 4WD 1/10th scale surface applications running on 2s Lipo setups
  • High current adjustable BEC (6v or 7.4v @ 4 Amps)
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty


Auto Cutoff: Yes
Battery Input Lead: 12AWG 5.1″ (130mm)
Battery Type: LiPo (3.7V per cell)
BEC: Yes
BEC Continuous Current: 4A
BEC Maximum Burst Current: 8A
BEC Type: Switch Mode
BEC Voltage: 6V/7.4V
Brakes: Yes
Connector Type: IC3
Forward: Yes
Input Voltage: 7.4 – 9.6V (2-3S LiPo, 5-9 cell)
Low-Voltage Cutoff Programmable: No
Maximum Burst Current: 550A
Motor Limit: With 2S LiPo: KV ≤ 5000 – With 3S LiPo: KV≤3000
Motor Output Lead: 12AWG 5.1″ (130mm)
Motor Type: Brushless – Sensorless
Output: 85A
Output Connector: 4mm Bullet
Overload Protection: Yes
Product Height: 1.3″ (33 mm)
Product Length: 1.7″ (43 mm)
Product Weight: 0.255lbs (116g)
Product Width: 2.1″ (53 mm)
Programmable: Yes
Reverse: Yes
Technology: Smart
Time Delay Brake: Yes
Water-Resistant: Yes
Wire Gauge: 12 AWG



  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual


Needed to Complete:
  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
