1992 Audi V8 Touring TT-02 1/10 4WD Electric Touring Car Kit


SKU: TAM58699-60A
SKU TAM58699-60A category: Tag: Brand: TamiyaTamiya


UPC: 4950344066148



You might also need...

tam58699-60a + tacj0300 + savb06kg + tra2919_1 + Dynamite Prophet Sport Mini Multichemistry Charger (50W/4A/4S) + rccwtaml
Price for all: $276.96

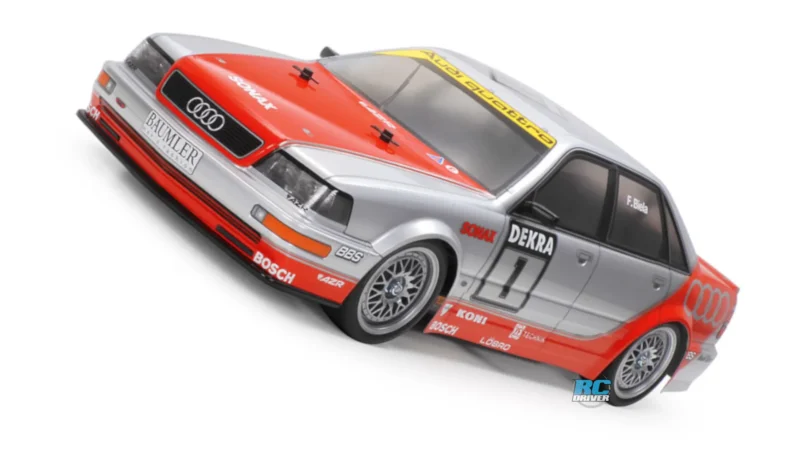

The Tamiya 1992 Audi V8 Touring TT-02 1/10 4WD Electric Touring Car Kit faithfully recreates the classic ’92 Audi V8 racing car. This TT-02 includes a detailed polycarbonate body, with the user-friendly and reliable TT-02 chassis to create a kit that looks as stunning on the shelf as it does on the race track.
About the Audi V8 Touring:
The 1992 Audi V8 Touring featured an improved 3.6-liter V8 engine, Audi’s famed quattro four-wheel drive, and an imposing body. It overcame significant ballast handicaps and showed off overwhelming strength, particularly in a podium sweep at the 1st race of the 2nd meet at the Nürburgring.
TT-02 Chassis:
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. Additionally, the TT-02 features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups, in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
  • 1/10 R/C model assembly kit.
  • Polycarbonate (clear) body.
  • Stickers are included to recreate the markings for the 1992 Audi V8 Touring. Window masking stickers included to aid in the paint job process.
  • Two-piece mesh wheels have silver color rims and spokes. They are paired with racing slick tires.
  • Separate parts are included to depict side mirrors.
  • A wealth of Hop-Up Option parts is available to tune the TT-02 chassis to your performance needs.
  • Adjustable Gear Ratio Yes
  • Bearings Plastic bushing
  • Body Material Polycarbonate
  • Body Stickers Included
  • Chassis Material ABS Plastic
  • Chassis Type TT-02
  • Construction Type Assembly Kit
  • Differential Type Gear
  • Drive Type 4WD
  • Motor 540-brushed type
  • Shock Damper Friction type
  • Suspension Fully Independent Double Wishbone
  • Terrain Use On-Road


Length: 463mm
Width: 188mm
Height: 138mm
Wheelbase: 257mm
Scale: 1/10
Needed To Complete:

  • 2-channel radio
  • Steering servo
  • 7.2 – 7.4 volt battery
  • Battery charger
  • Polycarbonate paint


Instruction Manual
